Surgical Video
If you have a high speed internet connection (cable, DSL or
better) and the QuickTime™ Player, you may view an
instructional video on the use of Airbrush Liposculpture®
System and see its bloodless fat removal in real time
through a skin window. The fat is removed both above and
below Scarpa's fascia while the vascular lattice is totally
preserved without injury. Alternatively, you may download
the movie (18Mb) in a format (.wmv) to view with the Windows®
Media Player.
|

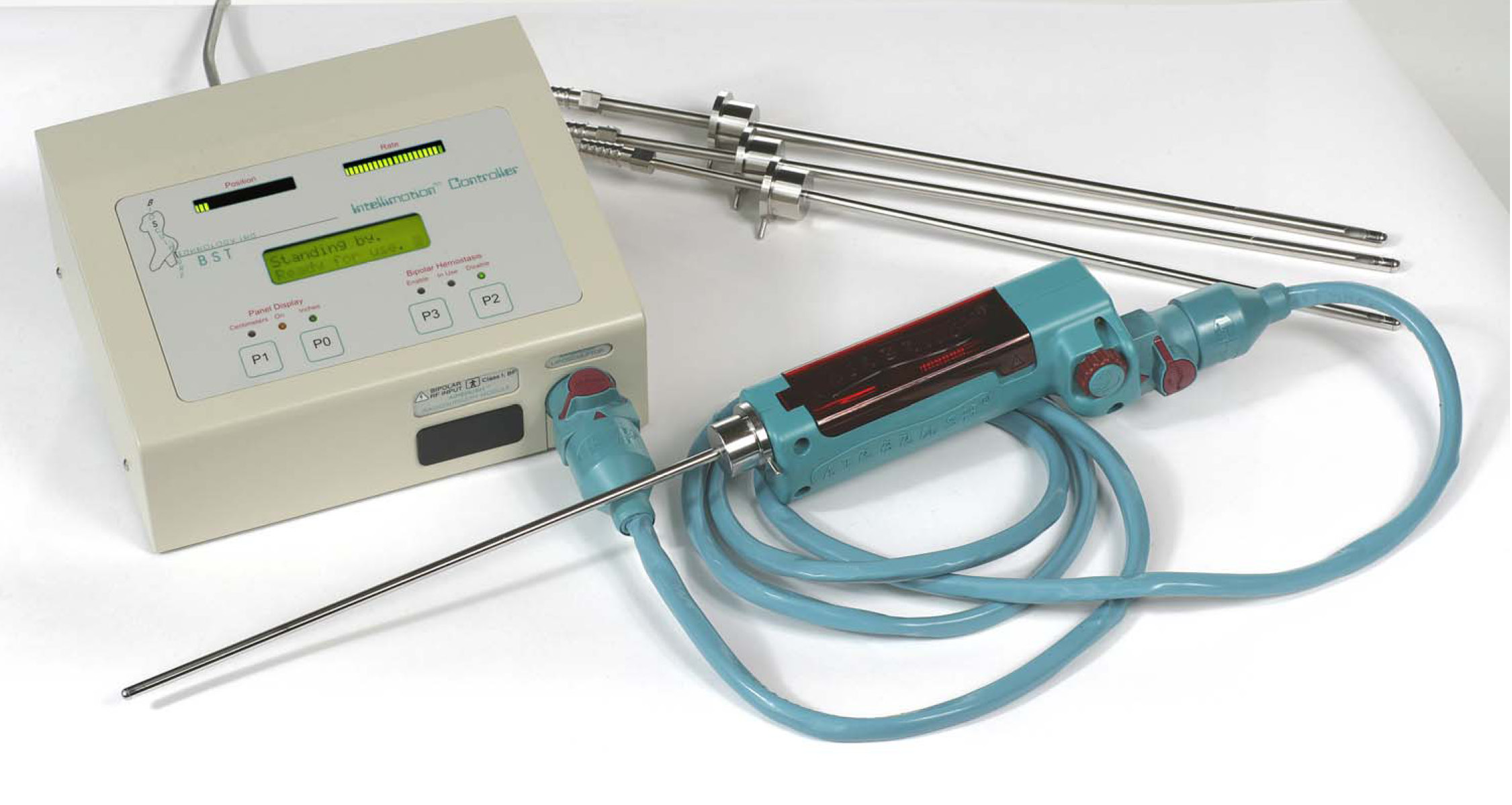

Airbrush®
Liposculptor
The AirbrushTM
Liposculptor is ergonomically designed to facilitate one-handed,
continuous adjustment of stroke length for power assisted
liposculpture. Space age technology using advanced composite
materials, pneumatics, electronics, and motion control allows
responsively controlled power to be packed into a minimum of space and
weight.
Patented mechanically efficient and gentle twin-cannula liposuction
allows the surgeon to effortlessly adjust the stroke length of the
instrument to achieve the desired artistic result as he sculpts the desired
body contours. It unleashes the artist in the surgeon,
permits the patient to visualize his or her results sooner and speeds return
to active life.
Intellimotion®
Controller
-
Advanced digital signal
processing, integrated circuitry, and proprietary software
allows intelligent and responsive functioning with the surgeon able to
continuously vary stroke length with his operating hand.
-
Panel displays tell the surgeon
precisely what the stroke length and rates are as well as graphically
depicting both parameters, cannula position, and
operating status at all times. Solid state
circuitry and advanced programming allows the feel and functioning of
each instrument to be customized to the surgeon's preferences.
-
Airbrush® Cannula
Sets
High quality permanent cannula pairs are
available in a wide variety of lengths and sizes.
-
Airbrush®
Multicore Quick Connector
The reusable multicore connector allows
rapid and convenient single button connection and disconnection of
control, power, and gas.
-
-
-
An single cannula electrical, power assisted small-footprint
liposuction device facilitating small and medium volume fat removal,
easy sculpting, and fat harvesting.
A separate RadioSurgery
Module is specially designed for use with the Intellimotion®
Controller which supplies optimal synchronization of
hemostatic power with cannula motion. Power is only
applied to tissue within the cannula, i.e. any small
blood vessels in the stalk of the aspirated fat globule that would
otherwise have simply been avulsed and left to bleed. The
ultrahigh frequency of 1.7 MHz output serves to further minimize lateral heat production. The effect is minimal bruising, rapid healing
and excellent cosmetic result.
The versatile unit may also be used as
an independent electrocautery unit with both unipolar and bipolar
capabilities. Hand pieces and foot pedals are
available for it. It has an easily adjustable power range to
"dial-in" the exact level suitable for any given procedure,
an indicator of current being supplied, and automatic fault
checking.
A low noise, compact compressor
to provide a self-contained compatible and filtered air source for the
surgeon desirous of avoiding the necessity and expense of tanked gas
in the office setting.
Airbrush Liposculpture®
System Key Benefits
| Greatly reduces operating time. |
| Greatly lessens the mechanical exertion required by the surgeon. |
| Facilitates resection in fibrous areas such as gynecomastia and
the flanks. |
| Ease of feathering at the margins of tissue resection. |
| More precise and even tissue removal with reduced postoperative
lumpiness. |
| Safer, cheaper, and faster than ultrasonic devices. |
| Less tissue trauma and bruising. |
Ordering
Pneumatic Airbrush Liposculpture® Systems are
not longer available for purchase as production is being
retooled to the next generation of Twin Cannula Assistled
Liposuction ("TCAL") technology, a sleeker line
of electromagnetically activated hand pieces.
Description |
Model
|
|
Airbrush®
Liposculptor II |
LS-HP-AB-101 |
unavailable |
Intellimotion® Controller |
LS-PC-BB-101 |
unavailable |
Intellimotion®
Upgrade |
LS-PC-BU-101 |
unavailable |
Airbrush®
RadioSurgery Module |
LS-EC-BB-101 |
unavailable |
Airbrush®
Compressor |
LS-AC-BB-101 |
unavailable |
Airbrush®
Cannula Sets |
LS-CA-IC/OC
|
unavailable |
| |
|
